تفاصيل المنتج:
|
| ذروة السطوع: | 1000 قرص مضغوط/متر مربع (ضوء الشمس قابل للقراءة) | حجم العرض: | شاشة مقاس 21.5 بوصة (546.86 ملم قطريًا) |
|---|---|---|---|
| القرار: | 1920 × 1080 (Full HD) | تقنية اللمس: | 10 نقاط CTP (متوافق مع القفازات) |
| واجهة: | LVDs مزدوجة القناة (8 بت RGB) | درجة الحرارة التشغيل.: | -10 درجة مئوية إلى +60 درجة مئوية (الصف الصناعي) |
| درجة حرارة التخزين: | -20 إلى + 60 ℃ | زاوية الرؤية: | 89 ° أفقي/عمودي (CR> 10) |
| نسبة التباين: | 1000:1 (معتاد) | واجهة تعمل باللمس: | USB |
| التطبيقات: | التصوير الطبي ، الأكشاك ، HMI | معالجة السطح: | ضباب 20 ٪ ، 6H |
| الضمان: | 2 سنوات (التغطية الموسعة للاستخدام الصناعي) | امتثال: | RoHS، REACH، خال من الهالوجين، ISO 9001/14001 |
Ultra-Bright 21.5" Industrial TFT LCD for Extreme EU/US Environments
The SFHD2150A01PT-H20%2 delivers unmatched 1000 cd/m² brightness – engineered for sunlight visibility in North American and European industrial applications. Featuring Full HD resolution, wide-temperature operation (-10°C to +60°C), and 10-point capacitive touch, this display excels in medical diagnostics, outdoor payment terminals, and factory automation. Certified to RoHS, REACH, and ISO standards, it meets stringent EU/US regulatory requirements.
Key Advantages for Industrial Clients:
✅ 1000nits High Brightness – Readable under direct sunlight (ideal for outdoor kiosks)
✅ Glove-Compatible Touch – Works with capacitive stylus/wet hands (USB interface)
✅ Extended Warranty – 2-year coverage for 24/7 operation
Industrial-Grade Performance
Wide Temperature Resilience
Cold-starts at -10°C (freezing warehouses) and operates at +60°C (factory floors), passing 120-hour thermal cycling tests.
Dual-Channel LVDS Interface
Noise-resistant signal transmission for Siemens/Beckhoff PLCs in high-EMI environments.
Medical & Outdoor Ready
1000:1 contrast ratio + 89° viewing angles for DICOM-compatible grayscale imaging and outdoor signage.
Rugged Build
Anti-glare 6H hardened glass, IP65-equivalent fog resistance, and ±4kV ESD protection.
Technical Specifications
|
Feature |
Industrial Value |
|---|---|
|
Power Efficiency |
Soft-start circuit (≤3A in-rush current) |
|
Touch Sensitivity |
10-finger detection (<10g pressure) |
|
Backlight Driver |
MY-1L2136A-v2.1 (10-30V input) |
|
Optical Bonding |
Liquid OCR for reduced reflection |
Medical
Surgical monitors, diagnostic imaging (DICOM grayscale)
Outdoor Infrastructure
Toll booths, bus stop info panels, self-service kiosks
Industry 4.0
CNC machine HMIs, robotic control interfaces (Germany)
Transportation
Airport baggage displays, train control systems (UK/France)
Why Choose This Display?
Manufactured by Saef Technology (ISO 9001/14001 certified), this module includes:
Specifications
| ITEMS | Unit | Specification |
| Screen Diagonal | mm | 546.86(21.5”) |
| Active area | mm | 476.064(H) x 267.786(V) |
| Pixels H x V | - | 1920(x3) x 1080 |
| Pixels Pitch | um | 247.95(per one triad) x247.95 |
| Pixel Arrangement | - | R.G.B. Vertical Stripe |
| Display Mode | - | VA Mode, Normally Black |
| Response Time | Msec | 14ms (typ., on/off) |
| Weight | Grams | TBD |
| Electrical Interface | - | Dual channel LVDS,8 bits RGB data input |
| Support Color | - | 16.7M colors |
| Surface Treatment | - | Anti-Glare,3H |
|
Temperature Range Operating Storage(Shipping) |
℃ |
-10 to +60 -20 to +60 |
External Dimensions
Interface Pin Definition
| Pin No. | Symbol | Description |
| 1 | RxO0- | Negative LVDS differential data input (Odd data) |
| 2 | RxO0+ | Positive LVDS differential data input (Odd data) |
| 3 | RxO1- | Negative LVDS differential data input (Odd data) |
| 4 | RxO1+ | Positive LVDS differential data input (Odd data) |
| 5 | RxO2- | Negative LVDS differential data input (Odd data) |
| 6 | RxO2+ | Positive LVDS differential data input (Odd data) |
| 7 | GND | Ground |
| 8 | RxOCLK- | Negative LVDS differential clock input (Odd clock) |
| 9 | RxOCLK+ | Positive LVDS differential clock input (Odd clock) |
| 10 | RxO3- | Negative LVDS differential data input (Odd data) |
| 11 | RxO3+ | Positive LVDS differential data input (Odd data) |
| 12 | RxE0- | Negative LVDS differential data input (Even data) |
| 13 | RxE0+ | Positive LVDS differential data input (Even data) |
| 14 | GND | Ground |
| 15 | RxE1- | Negative LVDS differential data input (Even data) |
| 16 | RxE1+ | Positive LVDS differential data input (Even data) |
| 17 | GND | Ground |
| 18 | RxE2- | Negative LVDS differential data input (Even data) |
| 19 | RxE2+ | Positive LVDS differential data input (Even data) |
| 20 | RxECLK- | Negative LVDS differential clock input (Even clock) |
| 21 | RxECLK+ | Negative LVDS differential clock input (Even clock) |
| 22 | RxE3- | Negative LVDS differential data input (Even data) |
| 23 | RxE3+ | Positive LVDS differential data input (Even data) |
| 24 | GND | Ground |
| 25 | CTL | CTL_DVR |
| 26 | CE | CE_DVR |
| 27 | NC | No connection |
| 28 | VDD | Power Supply Input Voltage |
| 29 | VDD | Power Supply Input Voltage |
| 30 | VDD | Power Supply Input Voltage |
Backlight Specification
| Parameter | Symbol | Value | Unit | ||
| MiN. | Typ. | Max. | |||
| Light Bar input Voltage | VLED | 48 | 52 | 56 | V |
| Light Bar input Current | ILED | - | 480 | - | mA |
| Power Consumption | PLED | 23.04 | 24.96 | 26.88 | W |
| LED Life Time | LBL | 40000 | 50000 | - | Hrs |
Electrical Characteristics
| Parameter | Symbol | Min | Typ Max | Unit | |
| Power supply voltage | VDD | 4.5 | 5.0 | 5.5 | V |
| Power Supply Current | IVDD | 500 | 1200 | mA | |
| In-Rush Current | IRUSH | 2.0 | 3.0 | A | |
| Permissible Input Ripple Voltage | VRF | 300 | mV | ||
| High Level Differential Input Threshold Voltage | VIH | +100 | mV | ||
| Low Level Differential Input Threshold Voltage | VIL | -100 | mV | ||
| Differential input voltage | VID | 200 | 600 | mV | |
| Input voltage(BL) | VBL_I | -0.3 | VDD+0.3 | mV | |
| Differential input common mode voltage | VCM | 1.0 | 1.2 | 1.5 | |
| Power Consumption | VD | 2.5 | 6 | W | |
| Parameter | Conditions | Min. | Typ. | Max. | Unit |
| Contrast Ratio | Center | 700 | 1000 | - | - |
| Response Time | Tr+Td | - | 14 | 20 | ms |
|
CF Color Chromaticity (CIE1931) |
Red x |
Typ. -0.03 |
0 |
Typ. +0.03 |
0 |
| White x | 0.323 | - | |||
| White y | 0.379 | - | |||
| Center Luminance of white | YLI | 800 | 1000 | cd/m2 | |
| Cross Talk | Ct | 2.0 | % |

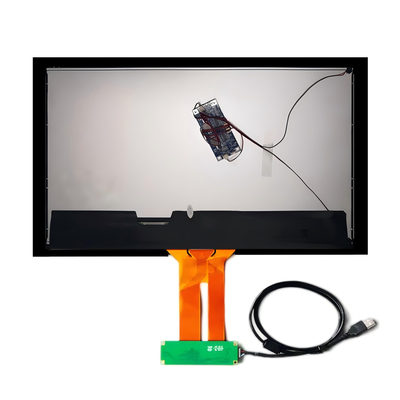

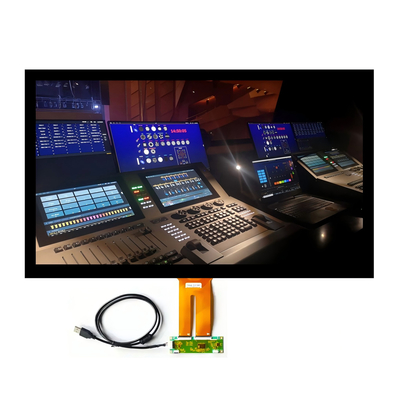

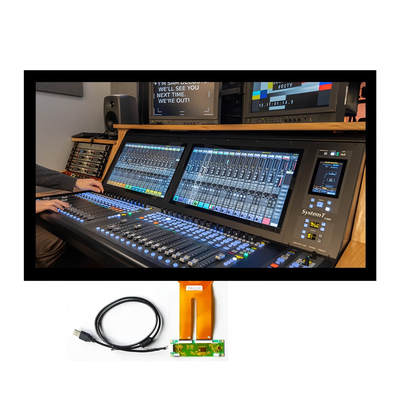

Product Image
